CST 7″ lift for 4wd Titan 04+

Description

THE CST 4WD TITAN 7″ LIFT WILL ACCOMMODATE 315/70/17 TIRES ON 17 X 8 INCH WHEELS WITH 5″ BACKSPACE. THIS KIT USES A ONE PIECE SUB-FRAME TO DROP DOWN THE FACTORY LOWER ARMS, WITH AN EXTENDED STEERING KNUCKLE LEAVING YOUR FACTORY UPPER CONTROL ARM IN THE STOCK LOCATION. FOR THE COIL OVER WE PROVIDE A DROP SPACER, OUR TITAN 4WD LIFT SYSTEM WILL KEEP YOUR WHEELS WITH IN FACTORY WIDTH AND HAVE A O.E. LIKE RIDE.

TITAN LONG BED 4WD MODELS WILL REQUIRE THE USE OF OUR CSS-N28-1 CARRIER BEARING BRACKET IN ADDITION TO THE KIT. INSTALLING THIS BRACKET WILL CORRECT DRIVE LINE ANGLES AND MINIMIZE ANY VIBRATIONS THAT COULD OCCUR.

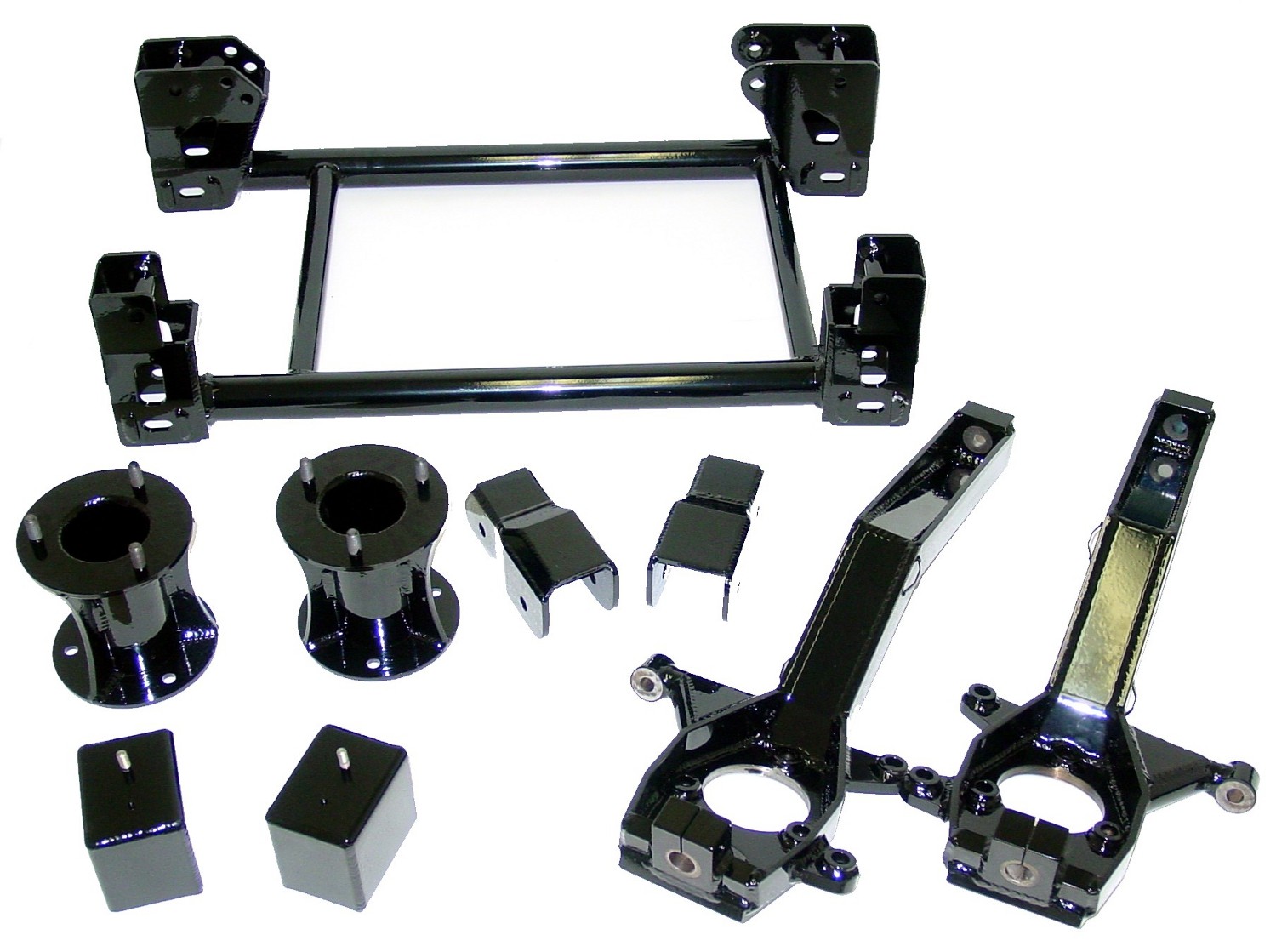

CSS-N3-3 Kit Features

– FRONT ONE PIECE GUSSETED SUB-FRAME
– DESIGNED TO FIT 315/70/17 W/ 8″ WIDE WHEELS 5″ BACKSPACE
– ALL PARTS COVERED IN A HIGH QUALITY GLOSS BLACK – POWDER COAT FINISH
– ABILITY TO BE PUT BACK TO STOCK

Notes

– REAR SHOCKS ARE REQUIRED AND AVAILABLE FOR THIS KIT – BUT ARE NOT INCLUDED IN THE DIRECT KIT
– TITAN LONG BED 4WD MODELS REQUIRE THE CSS-N28-1 – CARRIER BEARING BRACKET IN ADDITION TO THE STANDARD KIT.
– LONG BED MODELS MAY REQUIRE ANGLE SHIMS FOR – FURTHER ADJUSTMENT OF REAR END TO ELIMINATE MINOR VIBRATIONS

This Part Will Fit:

04-12 Nissan Titan 4wd
